Export Diagnostic Logs

This article explains how to export diagnostic logs in Syskit Point.

If you are facing issues with Syskit Point, the Syskit Point support team might ask you to export diagnostic logs to help with troubleshooting. This article shows all options when it comes to diagnostic logs export.


To export diagnostic logs, please sign in to Syskit Point with:

  • Syskit Point Admin account, or

  • Global Administrator account.

Please note! If you are experiencing issues with data sync, please use the Global Administrator account to sign in. If the user sync is not working correctly, Syskit Point will not resolve user roles. In such cases, only the Global Administrator account has access to the Diagnostic Logs Export screen.

Export Diagnostic Logs

Please note! After an issue arises, it can take up to 5 minutes for the related diagnostic log event to be available for export in Syskit Point.

To export diagnostic logs:

  • Navigate to Settings > General > About (1)

  • Click Diagnostics (2); Diagnostic Logs Export screen opens

Alternatively, you can open the Diagnostic Logs Export screen URL directly in your browser. To get the Diagnostic Logs Export screen URL, paste /#/app-diagnostics text at the end of your Syskit Point URL. for example, https://point-example.syskit.com/#/app-diagnostics

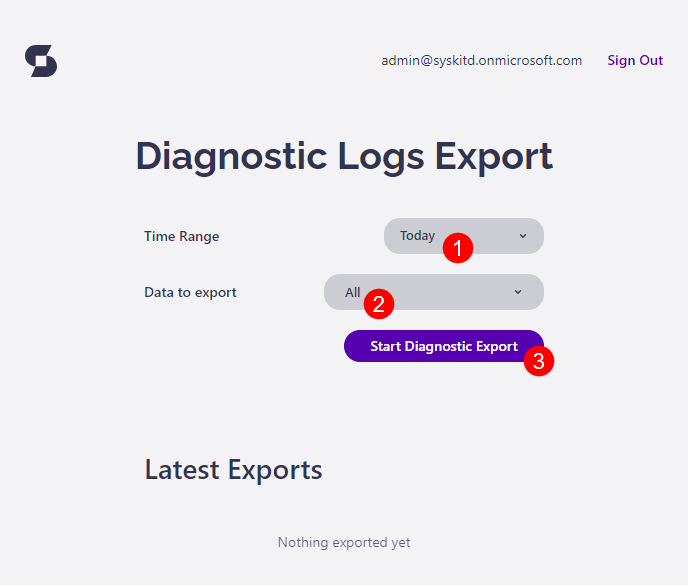

On the Diagnostic Logs Export screen:

  • Select the time Range (1);there are several predefined options - Today, Yesterday, Last 7 Days, Last 30 Days - along with the possibility to select specific start and end dates when choosing the Custom option; by default, the Today option is selected

  • Select Data to Export (2); by default, all data types are selected; use the default selection unless otherwise communicated by the Syskit Point support team

  • Click Start Diagnostic Export to create a file containing diagnostic logs

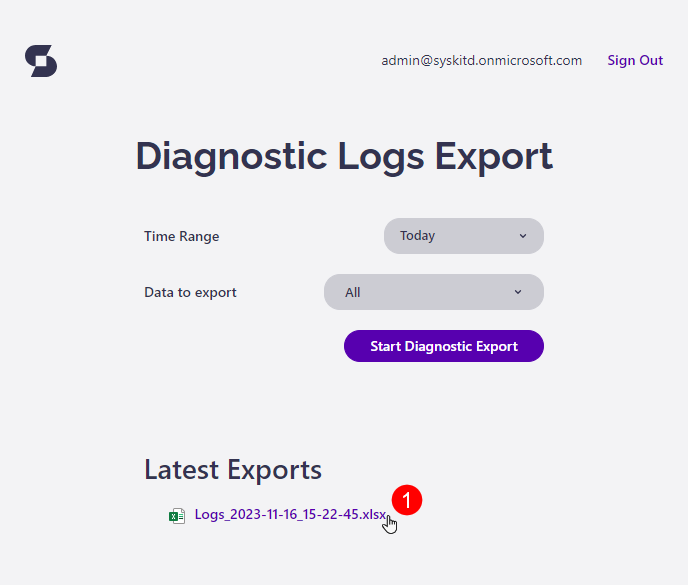

When the export is finished:

  • Download link is displayed in the Latest Exports section

  • Click the Link to download the Excel file (1); the download starts automatically

Next Steps

Once you download the file, please forward it to the Syskit Point support team.

Please note! If the exported file is larger than 7MB, please contact us to provide you with an upload link.
